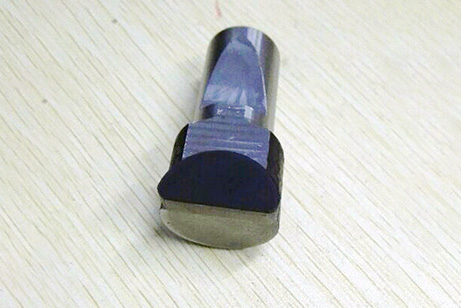

With its high hardness and wear resistance,PDC cutter is also used for stone quarry ,and other wear resistant parts.For stone cutting, Sometimes people brazed carbide tip on the cutter’s carbide base,then assemble it on other cutting machine.
With its high hardness and wear resistance,PDC cutter is also used for stone cutting ，and other wear resistant parts.For stone cutting, Sometimes people brazed carbide tip on the cutter’s carbide base,then assemble it on other cutting machine.
Application
Stone cutting,wear resistant parts,etc.
| Size | Diameter(mm) | Total Height(mm) | PCD Thickness(mm) | Shape |
| 1304 | 13.44 | 4.5 | 1.2-1.5 | round |
| 1308 | 13.44 | 8 | 1.5-1.8-2.0 | round |
| 1308 | 13.44 | 8.0(4.5+3.5) | 1.2-1.5 | Round with tip |
| 1313 | 13.44 | 13.2(8.0+5.2) | 1.5-1.8-2.0 | Round with tip |
| Size | L(mm) | W(mm) | Total Height(mm) | PCD layer Thickness(mm） | Shape |
| 6x6x8 | 6 | 6 | 8 | 1.5-1.8-2.0 | Square |
| 9.4x9.4x8 | 9.4 | 9.4 | 8 | 1.5-1.8-2.0 | Square |
| 9.4x9.4x8 | 9.4 | 9.4 | 8.0(4.5+3.5) | 1.5-1.8-2.0 | Square with tip |
| 12.7x12.7x8 | 12.7 | 12.7 | 8 | 1.5-1.8-2.0 | Square |
We can also produce and design as per clients’ drawings/samples/requirements.
